Repair ZIL-5301
The figure shows the installation locations of the parts and their designations according to the spare parts catalog.
We look at the figure and the table shows the decoding of the part.
The ZIL-5301 vehicle is equipped with a parking brake system with a drive from a spring energy accumulator.
The parking brake is activated by turning the valve handle to the extreme fixed position.
The front wheel brake mechanism is a disc brake with a two-piston floating caliper.
The ventilated brake disc is mounted on the hub and secured with bolts.
The figure shows the installation locations of the parts and their designations according to the spare parts catalog
We look at the figure and the table shows the decoding of the part.
ZIL-5301 pneumatic brake drive pressure regulator
The pressure regulator is connected by a pipeline directly to the compressor; attached to the bracket with two bolts.

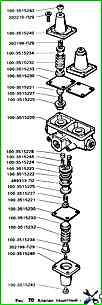

The triple safety valve divides the line into two main and one additional circuit.
It shuts off one of the circuits in case of damage or loss of tightness.
Installation of ZIL-5301 brake control and pneumatic equipment according to the catalog
The figure shows the installation locations of the parts and their designations according to the spare parts catalog
